CalDigit 'Element 5 Hub' Thunderbolt 5 & USB4 hub

The Most Compact Thunderbolt 5 Hub.

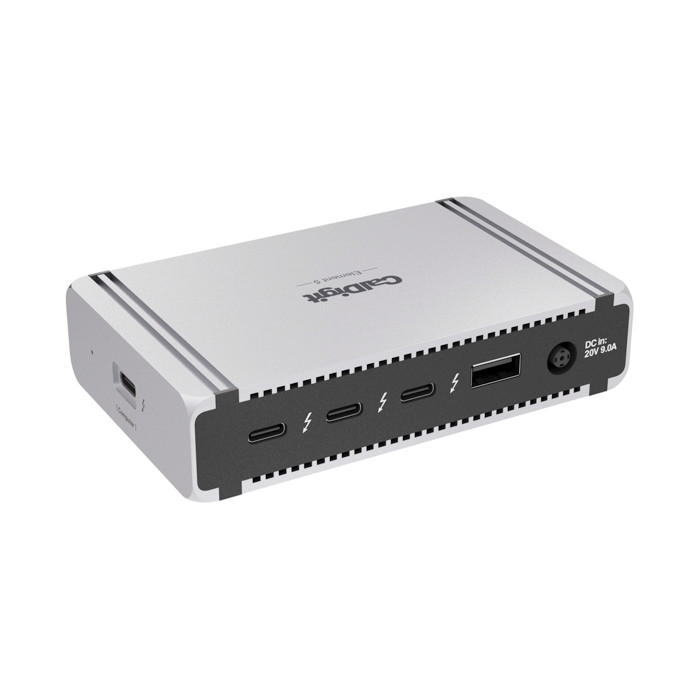

The CalDigit Element 5 Hub (E5) is a truly unique device. It features more ports than any other Thunderbolt hub. It does this while also maintaining the exact same compact size as the previous Thunderbolt 4 Element Hub. With a wide selection of powerful ports, it is an ideal solution for expanding workflows, while taking up minimal desk space.

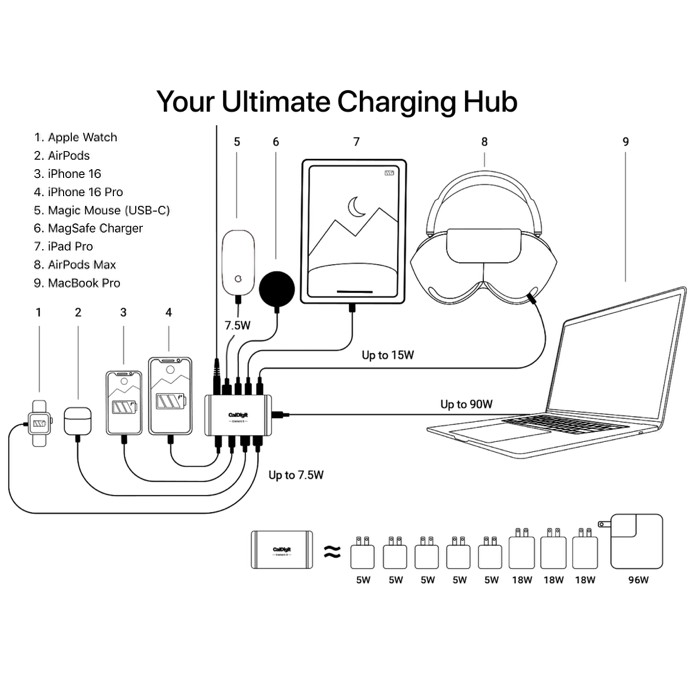

Even though the device is compact, it includes features found in high-end docks, such as 90W of consistent host charging, up to 120Gb/s connectivity, and support for up to 3 displays on supported Windows Thunderbolt 5 PCs.

Connect what you need, when you need.

Not Your Average Hub

Traditional USB hubs are mostly equipped with low performing ports, or ports with insufficient power delivery in order to keep your devices charged.

The Element 5 Hub allows you to have both great performance, and consistent power, thanks to the up to 120Gb/s throughput of Thunderbolt 5.

Total Compatibility

When you have such a powerful hub you also need the flexibility to use it with any device.

The Element 5 Hub is compatible with Thunderbolt 5, Thunderbolt 4, Thunderbolt 3 Macs, USB4, USB4 v2, and USB-C devices.

This also includes USB-C or Thunderbolt iPads, iPhones, Windows tablets and more*.

*The Element 5 Hub does not support Thunderbolt 3 Windows PCs. Users on Thunderbolt 3, Thunderbolt 4, and USB-C host computers, tablets, or phones will see reduced functionality.

Versatile USB Ports

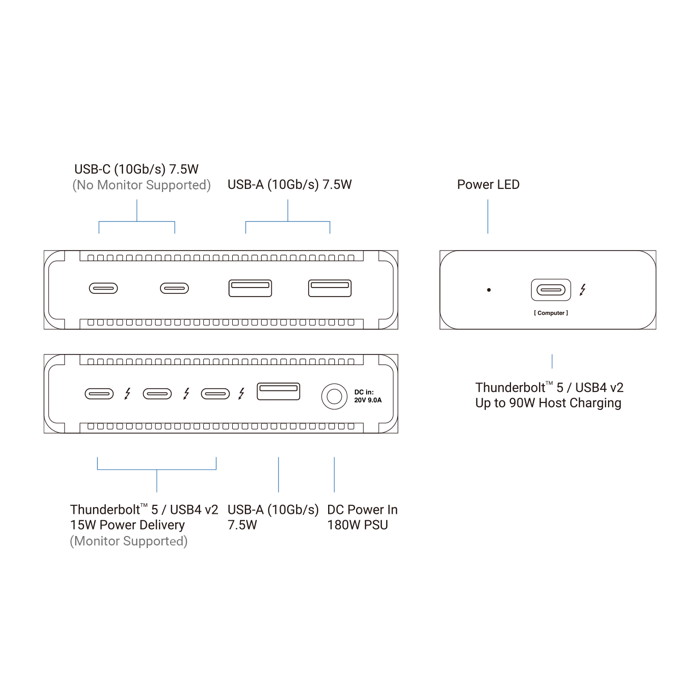

The versatility of having both USB-C and USB-A ports offers great convenience. All of the USB ports on the Element 5 Hub offer 10Gb/s performance, and 7.5W of power.

This is an ideal option for connecting high performance USB-C SSDs to the hub. Don’t forget that you can also connect USB-C devices to the Thunderbolt 5 ports.

Bandwidth Boost

When you connect bandwidth intensive monitors to the Element 5 Hub it will enable Bandwidth Boost in order to priorotize displays, and provide up to 120Gb/s performance. This will then keep 40Gb/s for the rest of the dock.

The great thing about this is that it will allow for higher refresh rate displays to be connected to the device, as well as three 4K 60Hz displays on Windows Thunderbolt 5 PCs.

Single, Dual, or Triple Displays

Whether you need a high-resolution display, a high-refresh rate display, or up to 3 external displays, the Element 5 Hub has you covered.

Single Monitor

If you’re looking to add a single monitor to the Element 5 Hub you can connect it to one of the spare Thunderbolt 5 ports. If you wish to connect an HDMI monitor you can use a USB-C to HDMI Adapter.

Dual Monitors

• macOS users on base M4, M1/M2/M3/M4 Pro, M1/M2/M3/M4 Max, M1/M2 Ultra, or Intel based Macs can connect up to dual displays.
• M1/M2/M3 based Macs are limited to 1 external monitor by design via their Thunderbolt ports.
• Windows PC Thunderbolt 5 and Thunderbolt 4 users can connect up to dual displays.

Triple Monitors

• macOS does not support Triple monitors via a Thunderbolt Dock or Hub.
• Windows PC Thunderbolt 5 users can connect up to three displays on supported host computers.
• Windows PC Thunderbolt 4 users cannot connect three displays natively.

Notes:

• Dual 5K monitors must be Thunderbolt 4 or Apple Studio Displays. Dual LG UltraFine 5K monitors are not supported. 6K monitors can be a Thunderbolt 4 monitor or an Apple Pro Display XDR. DSC (Display Stream Compression) support is required for 6K and 8K resolutions.
• Higher refresh-rates (above 60Hz) may require DSC (Display Stream Compression) support on the monitors and host GPU. The bit/color depth may vary in order to support higher refresh-rates.
• Some M3 MacBooks such as the MacBook Air can support dual external monitors up to 5K and 6K when the laptop lid is closed (clamshell mode).
• Currently M1/2/3/4 Macs can only support up to HDMI 2.0b over its Thunderbolt ports. As such, resolutions will be limited to 4K 60Hz when using an HDMI adapter. If a higher refresh-rate is required, please use a USB-C to USB-C or USB-C to DisplayPort or DisplayPort to DisplayPort connection. For more information about a Mac’s external display support please visit https://support.apple.com/en-us/101571 and https://www.caldigit.com/macbook-multiple-monitor-support-with-caldigit-thunderbolt-docks/
• Results may vary due to OS updates. For external display compatibility over a single Thunderbolt connection on different Windows computers, please refer to the manufacturer’s website.
